Master link G80

- Certified master link Grade 80 - main or connecting component in the production of rope, chain and polyester slings.
- Suitable for single and double leg systems
- 4:1 safety factor
- In accordance with standard EN1677-4
- Load capacity from 1.6t to 100t

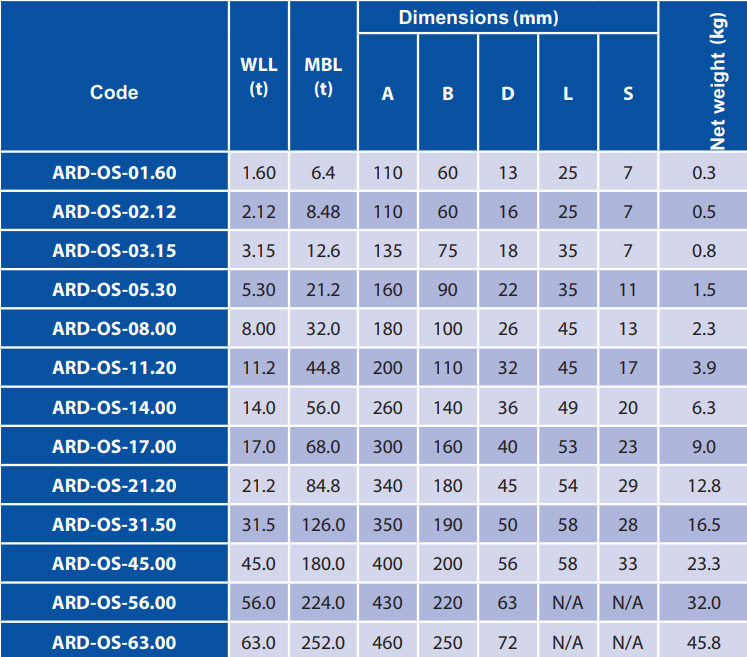

Code:	WLL:	Net weight:

ARD-OS-01.6	1.60 t	0.34 kg
ARD-OS-21.20	21.20 t	12.80 kg
ARD-OS-02.12	2.12 t	0.54 kg
ARD-OS-03.15	3.15 t	0.823 kg
ARD-OS-05.30	5.30 t	1.50 kg
ARD-OS-08.00	8.00 t	2.32 kg
ARD-OS-11.20	11.20 t	3.95 kg
ARD-OS-14.00	14.00 t	6.34 kg
ARD-OS-17.00	17.00 t	8.96 kg
ARD-OS-31.50	31.50 t	16.55 kg
ARD-OS-45.00	45.00 t	23.28 kg

The master link is forged by special grade 80 alloy steel with high intensity and high toughness, and then it is heat treated. It can be matched with grade 80 slings and chains which can meet the standard or EN818-2, wire ropes and webbing slings
