You are in: Chain and accessories / Accessories for chains grade 80 / Screw pin anchor shackle G80

Screw pin anchor shackle G80

- Screw pin anchor shackles (Omega type shackle or bow shakle) are made of high-quality steel Grade 80 with a stable, corrosion-resistant coating
- Their main purpose is to connect various rigging elements to each other, including when pulling loads
- Available in a wide range of sizes from 0.33t to 85.00t, available in stock
- Compliant with standard EN13889

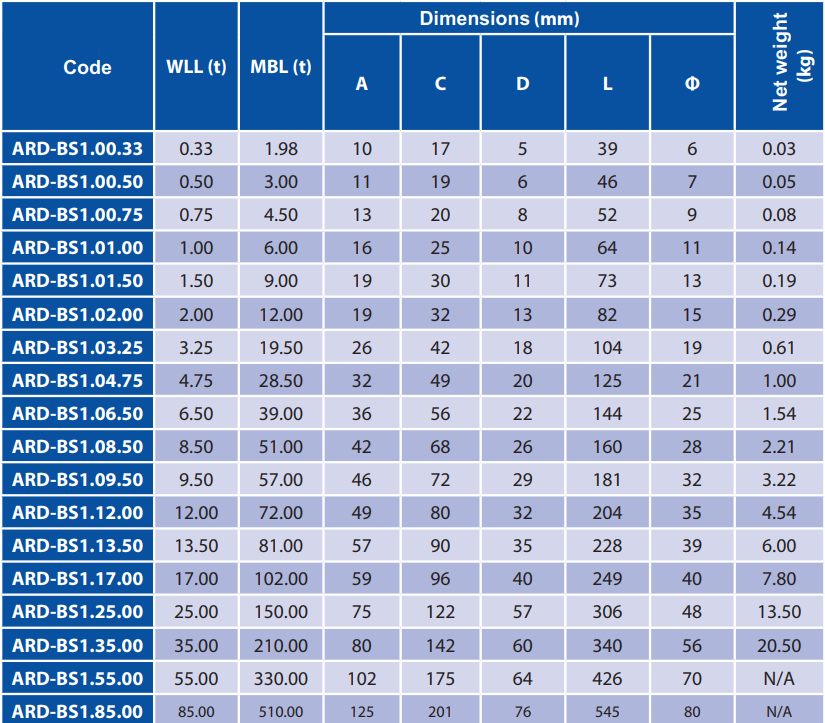

Code:	WLL:	Net weight:
ARD-BS1-00.33	0.33 t	0.03 kg
ARD-BS1-00.50	0.50 t	0.05 kg
ARD-BS1-00.75	0.75 t	0.08 kg
ARD-BS1-01.00	1.00 t	0.14 kg
ARD-BS1-01.50	1.50 t	0.19 kg
ARD-BS1-02.00	2.00 t	0.29 kg
ARD-BS1-03.25	3.25 t	0.61 kg
ARD-BS1-04.75	4.75 t	1.00 kg
ARD-BS1-06.50	6.50 t	1.54 kg
ARD-BS1-08.50	8.50 t	2.20 kg
ARD-BS1-09.50	9.50 t	3.22 kg
ARD-BS1-12.00	12.00 t	4.54 kg
ARD-BS1-13.50	13.50 t	6.00 kg
ARD-BS1-17.00	17.00 t	7.80 kg
ARD-BS1-25.00	25.00 t	13.50 kg
ARD-BS1-35.00	35.00 t	20.50 kg
ARD-BS1-55.00	55.00 t	37.00 kg
ARD-BS1-85.00	85.00 t	59.00 kg

Description
Inquiry

A Screw Pin Anchor Shackle Grade 80 (Omega or bow shackle) is a type of shackle, a crucial component in lifting and rigging applications.They are commonly used in various industries, such as construction, manufacturing, and marine applications. They provide a secure connection point for attaching slings, chains, or other rigging components. The screw pin design allows for easy and quick connection or disconnection, making them convenient for many lifting and rigging operations.
