- Screw pin chain shackle Grade 80 or  D type shacke are made of high-quality steel with a stable, corrosion-resistant coating
- Their main purpose is to connect different elements of rigging to each other, including when pulling loads, but only below 90° (or straight up) otherwise the sheave may twist.
- Available in a wide range of sizes from 0.33t to 85.00t, available in stock
- Compliant with standard EN13889

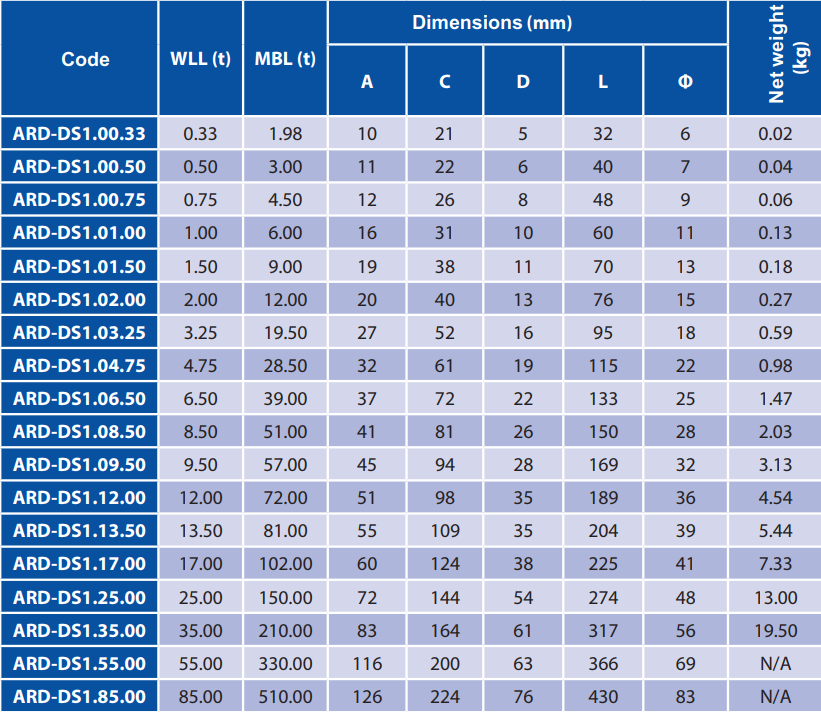

Code:	WLL:	Net weight:
ARD-DS1-00.33	0.33 t	0.02 kg
ARD-DS1-00.50	0.50 t	0.04 kg
ARD-DS1-00.75	0.75 t	0.06 kg
ARD-DS1-01.00	1.00 t	0.13 kg
ARD-DS1-01.50	1.50 t	0.18 kg
ARD-DS1-02.00	2.00 t	0.27 kg
ARD-DS1-03.25	3.25 t	0.59 kg
ARD-DS1-04.75	4.75 t	0.98 kg
ARD-DS1-06.50	6.50 t	1.47 kg
ARD-DS1-08.50	8.50 t	2.03 kg
ARD-DS1-09.50	9.50 t	3.13 kg
ARD-DS1-12.00	12.00 t	4.54 kg
ARD-DS1-13.50	13.50 t	5.44 kg
ARD-DS1-17.00	17.00 t	7.33 kg
ARD-DS1-25.00	25.00 t	13.00 kg
ARD-DS1-35.00	35.00 t	19.50 kg
ARD-DS1-55.00	55.00 t	30.50 kg
ARD-DS1-85.00	85.00 t	48.50 kg
